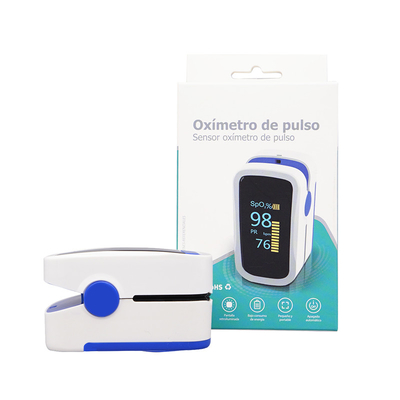

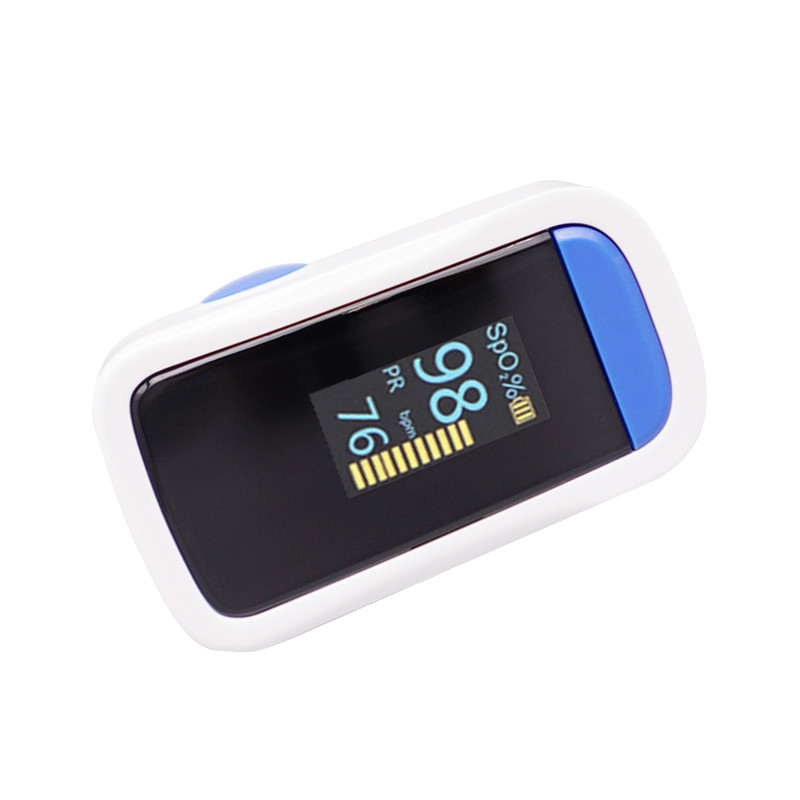

Multifunction Heal Force Pulse Oximeter ROHS Home Oxygen Saturation Monitor With Alarm

Product Description

Heal Force Pulse Oximeter  Blood Oxygen Saturation Monitor With Alarm

★Product parameters.
Blood oxygen saturation measurement range: 70%-100% (resolution: 1%)
Blood oxygen saturation measurement accuracy: 80%-99% range ± 2%, ≤ 70% not defined
Blood oxygen saturation resolution: blood oxygen saturation ±1%, the
Pulse rate measurement range: 30BPM-240BPM
Pulse rate measurement accuracy: ±1BPM or ±1% of the measured value (take the larger value)

Blood perfusion index measurement range:0.2%-30%
Blood perfusion index PI: ≥0.2%, ±0.1%
Power consumption: less than 30MA Automatic shutdown:8 seconds when no finger is inserted
Storage humidity: 15%-80% when working, 10%-80% storage
Battery type: 2 * 1.5V (2 AAA alkaline, the product does not contain batteries)
Operating temperature:5℃-4℃
Atmospheric pressure:70Kpa-106kpa
Material: ABS + PC Display Specifications: four color OLED

How to use a oximeter?

1 Install 2 AAA batteries according to the positive and negative
marks in the battery compartment and close the battery cover
2 Open the clamp and put the finger in the measuring area (fully
extend the finger)
3 In the process of use, the tested finger should not pull the human
body and should not be in the state of movement.
4 Read the relevant data directly from the monitor.
During the measurement process, the display direction can be
5 changed once by pressing the key,
There are 6 conversion display directions.

Why use a oximeter to
measure blood oxygen
saturation?
OXYGEN SATURATION (SpO2), an important basic data of clinical medi- cine, is an important indicator of

the state of OXYGEN in the body. The normal level of oxygen saturation in the blood (arteries) is not thought

to be lower than 94%, and a lower level is considered inadequate. Low oxygen saturation can lead to

dizziness, weakness and vomiting. In se- rious cases, it can be life-threa ening.

Our Advantages

1. We have been specializing in the production of medical products line for more than 35 years.
2. Obtained the CE,510K,ROHS,REACH quality system certification and has passed BSCI,ICS factory audit.
3. We strictly control the quality of raw materials and products in the production process.
4. Built a mold design team with more than 10 years of experience. Support OEM and ODM service.According to

customer requirements to develop and design the mold.
5. Advanced laboratory equipment, can carry out a variety of experimental tests.
