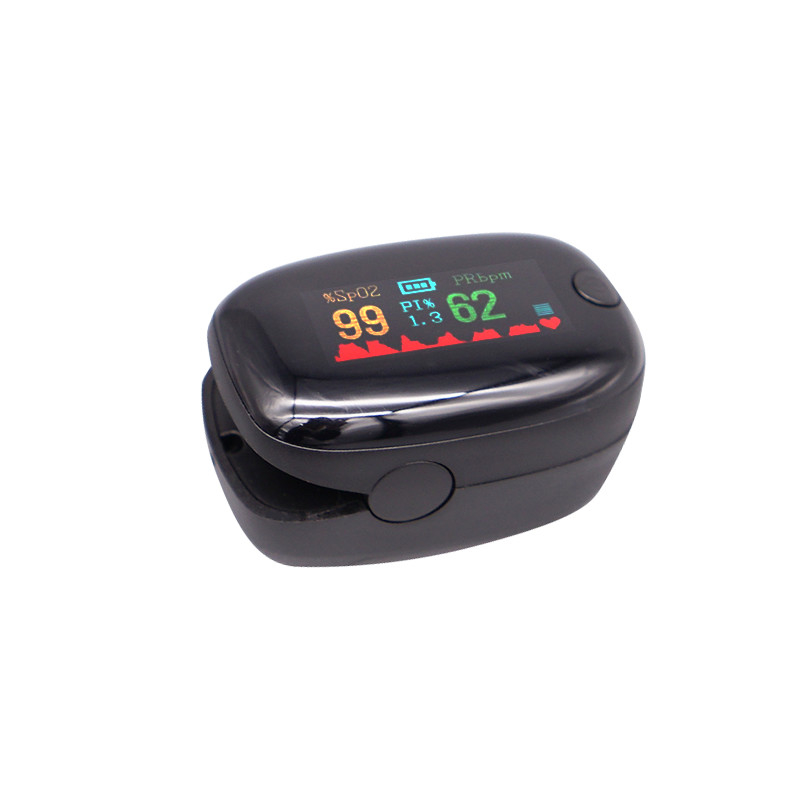

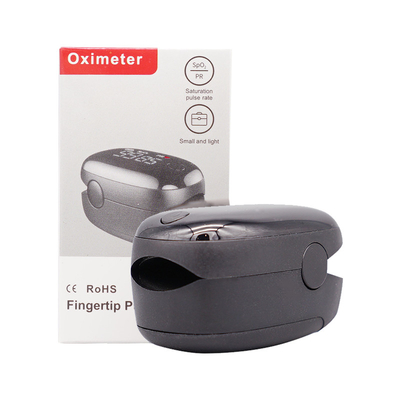

OLED 8s Home Medical Pulse Oximeter Handheld Finger Oxygen Monitor Device

Product Description

Digital Portable Handheld OLED Finger Blood Oxygen Pulse Oximeter With 2 Batteries

Fingertip oximeter pulse oximeter, using infrared light technology, through the finger skin and musculoskeletal

tissue after the brightness of light, accurate detection of human blood oxygen saturation and pulse. Different

from blood collection test, high safety, no need to worry about blood infection, no pain; high precision, accuracy

fully comply with the EU CE standard. So, what are the features of the fingertip oximeter? Why not take a look!

Fingertip pulse oximeter has the following characteristics.

1, can monitor oxygen saturation, pulse parameters. And there is a pulse pulse chart display.
2,Automatic shutdown function after about 8 seconds when there is no signal.
3,Use two AAA batteries, low power consumption, the battery can be used for 20 hours.
4,Low voltage alarm display.
5, the product is light, small size, easy to carry. Weight: 50g (including 2 batteries); with lanyard: easy to hang

around the neck, but also 6, into the pocket.
7, easy to use, one key operation.
8,Have high accuracy and repeatability.

The above is the specific characteristics of the fingertip oximeter introduction. The fingertip oximeter is suitable

for people of all ages, including children children, adults, and the elderly. It is also necessary for normal people

to monitor their body condition at all times; if you, or your family or friends, have any of the above mentioned

medical conditions, then it is even more important to have a fingertip pulse oximeter. It is not only easy to use,

but also safe and hassle-free, eliminating the tedium of waiting in line to check your body condition anytime and

anywhere.

SpO2 measurement range: 5%-99%
SpO2 accuracy 1: + 2 % in the range of 70 % -99%
+ 2% in the range of 70%-99%
Other scope is not defined
SpO2 Alarm range: Consistent with the display range, the set step length is 1 %
Pulse cate range: 30 bpm-250 bpm
Pulse rate accuracy: 土1bpm
Pulse rate Alarm range: Consistent with the display range, the set step length is 5bpm
Data update cycle: 0.25s-2s
SpO2 PR average: 8s
Pulse rate sound: PR tone
Peak Wavelength range: 500 nm-100nm
Maximum optical output power: 150 mW
Pulse rate display: Numeric
Display Specifications: four color OLED,0.96"
Power dissippanon: in normal measurement , less than 10 mA ,in power off state,less than 50uA
Battery:DC 3V 2*AAA

Finger oximetry monitoring of blood oxygen is a non-invasive operation that can effectively monitor blood

oxygen in the body and play a key role in predicting changes in the condition. The normal range for finger

oximetry oxygen saturation is 90%-100%. If it is below 90%, it indicates that the patient is suffering from

severe hypoxia. Also need to pay attention to long-term clamping finger pulse easily due to local compression

or cold weather, and affect the peripheral blood circulation of the finger, resulting in misjudgment, can be

soaked in warm water and then re-monitoring to improve the accuracy of detection. Patients with severe

pneumonia, chronic obstructive pulmonary disease, sleep apnea, and patients with recurrent respiratory

failure can be monitored with finger oximetry.

Our Advantages

1. We have been specializing in the production of medical products line for more than 35 years.
2. Obtained the CE,510K,ROHS,REACH quality system certification and has passed BSCI,ICS factory audit.
3. We strictly control the quality of raw materials and products in the production process.
4. Built a mold design team with more than 10 years of experience. Support OEM and ODM service.According to

customer requirements to develop and design the mold.
5. Advanced laboratory equipment, can carry out a variety of experimental tests.
