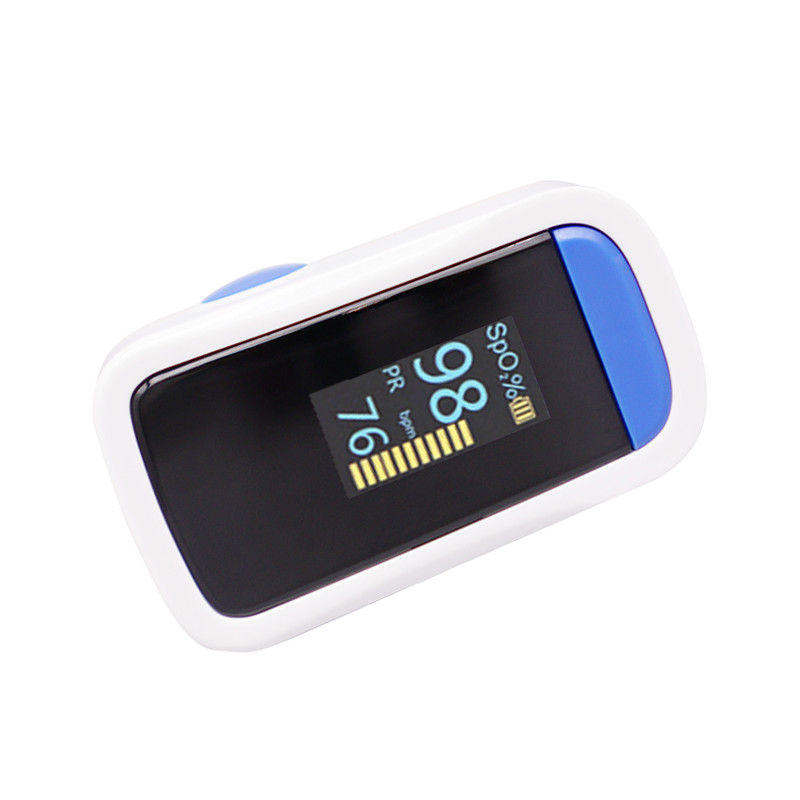

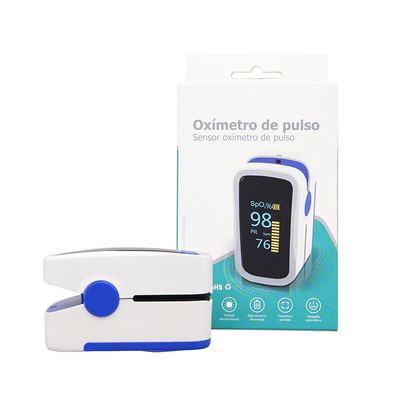

ROHS OLED Heart Rate Home Medical Pulse Oximeter 510K Oxygen Level Finger Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | THXC |
| Certification: | CE |
| Model Number: | TX-2-OM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 units |
|---|---|
| Price: | $5.28-7.68 500 units |
| Packaging Details: | carton |
| Delivery Time: | 5-15 |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 units/per month |
|
Detail Information |
|||
| Material: | ABS+PC | Shelf Life: | 1 Year |
|---|---|---|---|
| Function: | Test Blood Oxygen | Power Supply: | Removable Battery (2*AAA Battery) |
| Type: | Finger | Paramete: | SPO2, Pulse Rate |
| Display Type: | OLED | Sample: | Available |
| Package: | Carton | After-sale Service: | Online Technical Support |
| Product Name: | Pulse Oximeter | ||
| High Light: | ROHS Home Medical Pulse Oximeter,510K oxygen level finger tester,OLED heart rate pulse oximeter |
||
Product Description
Portable Mini Fingertip Pulse Oximeter, Heart Rate And Blood Pressure Tester
★Product parameters.
Blood oxygen saturation measurement range: 70%-100% (resolution: 1%)
Blood oxygen saturation measurement accuracy: 80%-99% range ± 2%, ≤ 70% not defined
Blood oxygen saturation resolution: blood oxygen saturation ±1%, the
Pulse rate measurement range: 30BPM-240BPM
Pulse rate measurement accuracy: ±1BPM or ±1% of the measured value (take the larger value)
Blood perfusion index measurement range:0.2%-30%
Blood perfusion index PI: ≥0.2%, ±0.1%
Power consumption: less than 30MA Automatic shutdown:8 seconds when no finger is inserted
Storage humidity: 15%-80% when working, 10%-80% storage
Battery type: 2 * 1.5V (2 AAA alkaline, the product does not contain batteries)
Operating temperature:5℃-4℃
Atmospheric pressure:70Kpa-106kpa
Material: ABS + PC Display Specifications: four color OLED
How to use a oximeter?
1 Install 2 AAA batteries according to the positive and negative
marks in the battery compartment and close the battery cover
2 Open the clamp and put the finger in the measuring area (fully
extend the finger)
3 In the process of use, the tested finger should not pull the human
body and should not be in the state of movement.
4 Read the relevant data directly from the monitor.
During the measurement process, the display direction can be
5 changed once by pressing the key,
There are 6 conversion display directions.
Finger oximetry monitoring of blood oxygen is a non-invasive operation that can effectively monitor blood
oxygen in the body and play a key role in predicting changes in the condition. The normal range for finger
oximetry oxygen saturation is 90%-100%. If it is below 90%, it indicates that the patient is suffering from
severe hypoxia. Also need to pay attention to long-term clamping finger pulse easily due to local compression
or cold weather, and affect the peripheral blood circulation of the finger, resulting in misjudgment, can
be soaked in warm water and then re-monitoring to improve the accuracy of detection. Patients with severe
pneumonia, chronic obstructive pulmonary disease, sleep apnea, and patients with recurrent respiratory
failure can be monitored with finger oximetry.
Our Advantages
1. We have been specializing in the production of medical products line for more than 35 years.
2. Obtained the CE,510K,ROHS,REACH quality system certification and has passed BSCI,ICS factory audit.
3. We strictly control the quality of raw materials and products in the production process.
4. Built a mold design team with more than 10 years of experience. Support OEM and ODM service.According to
customer requirements to develop and design the mold.
5. Advanced laboratory equipment, can carry out a variety of experimental tests.
